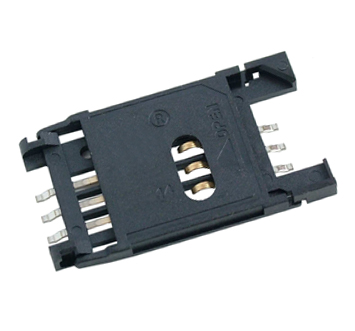

ADA-SIM014, SIM card connector, Hinged cover type, w/o detective switch

Mechanical Characteristics:
Insulation material: Thermoplastic, UL 94V-0

Electrical Characteristics:
Number of contacts: 6 pin
Contact resistance: ≤ 100MΩ
Insulation resistance: 1000MΩ/500VDC

Solderability:
IR reflow: 260, 8-10 sec max.
Hand soldering: 330, 3 sec max.

Environment characteristics:
Operating temperature: -25~85
Operating humidity: 10%~95% RH
Storage temperature: -25~85
Storage humidity: 10%~95% RH
