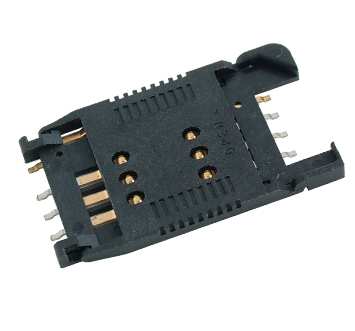

ADA-SIM028, SIM card connector, Hinged cover type, with detective switch


General Characteristics:
  Switch: normally open
  Dimension: 30x17.2x2.3mm (LxWxH)
  Weight: 1.9g (approx.)
  Durability: 10000 cycles

Mechanical Characteristics:
  Insulation material: Thermoplastic, UL 94V-0

Electrical Characteristics:
  Number of contacts: 6 pin, switch: 2pin
  Contact resistance: ≤ 200MΩ
  Insulation resistance: 1000MΩ/500VDC

Solderability:
  IR reflow: 230 degrees centigrade, 8-10 sec max.
  Hand soldering: 330 degrees centigrade, 3 sec max.

Environment characteristics:
  Operating temperature: -25~+85 degrees centigrade
  Operating humidity: 10%~95% RH
  Storage temperature: -25~+85 degrees centigrade
  Storage humidity: 10%~95% RH
